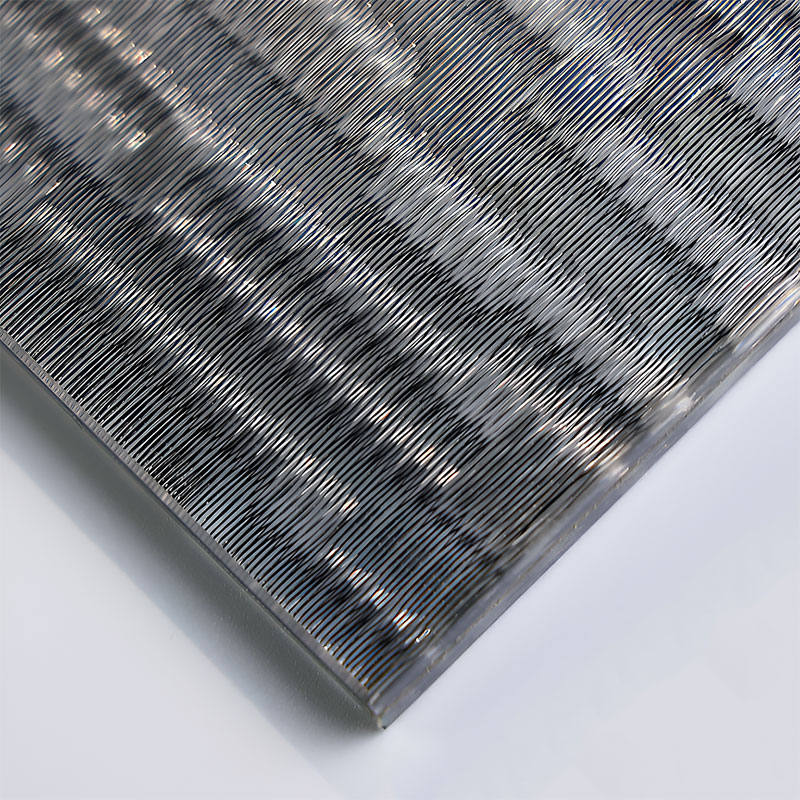

GlasMetis QKGTH Laminated Wire Mesh Glass Panel
GlasMetis QKGTH Laminated Wire Mesh Glass Panel is an advanced architectural glass solution that integrates metal mesh between laminated glass layers. Designed for safety, strength, and stunning visual impact, this product is perfect for contemporary interiors and exterior facades.
Safety Meets Artistic Expression
This innovative laminated wire mesh glass panel combines the clarity of glass with the texture and strength of finely woven or etched metal mesh. Crafted from stainless steel, brass, copper, or aluminum, the embedded mesh not only enhances visual appeal but also serves as a safety reinforcement.

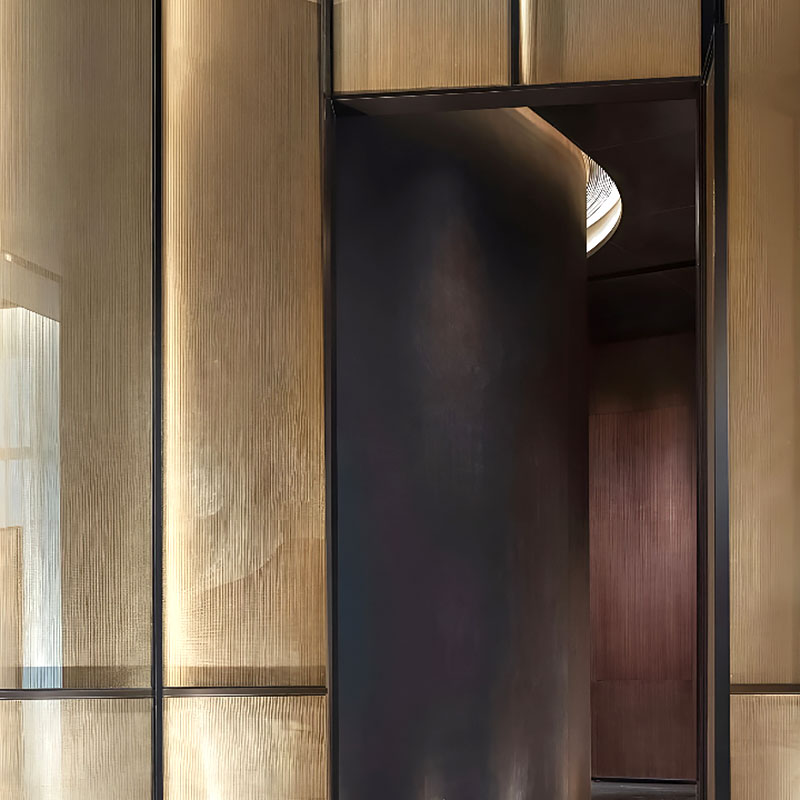

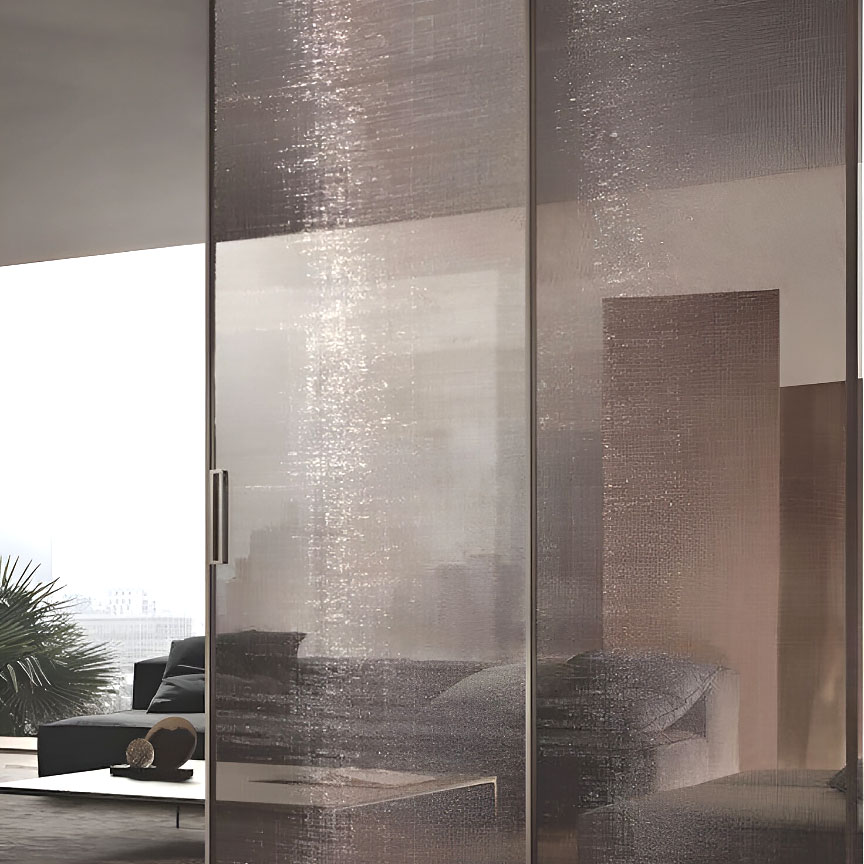

In case of breakage, the metal mesh holds the glass fragments together, reducing risk and adding structural durability. Additionally, this mesh glass panel provides sound insulation and privacy while allowing natural light to flow through, making it ideal for elevators, partitions, doors, and wall features.
Highly Customizable for Any Project
GlasMetis QKGTH can be customized in size, thickness, mesh pattern, and glass type. Options include fire-resistant, low-e coated, and bulletproof laminated glass. Mesh colors range from silver, gold, and bronze to vibrant hues like red, green, and blue, providing creative freedom for architects and designers.
Logos or patterns can be woven into the mesh, offering branded or artistic design possibilities. Standard sizes up to 3000 × 8000 mm are available, along with tailored solutions to fit any architectural requirement.
Key Features
- Safety: Reinforced structure holds glass together when broken.
- Strength: High-impact resistance and long-term durability.
- Acoustic Control: Reduces noise for peaceful environments.
- Aesthetic Variety: Mesh, color, and finish options for every style.
- Eco-Friendly: Recyclable materials and low maintenance needs.
Product Specifications
Model Variants:

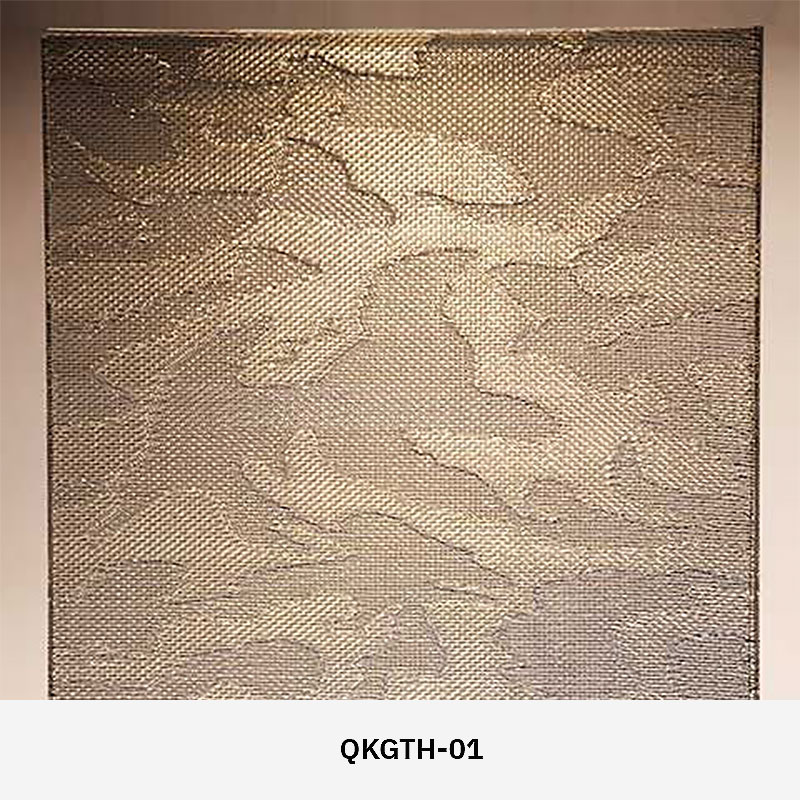

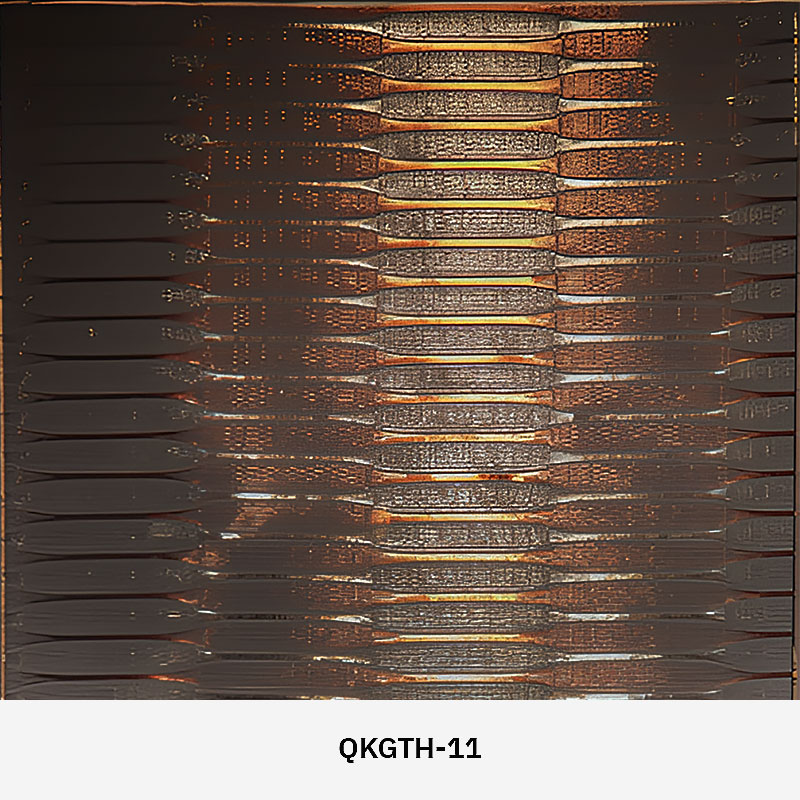

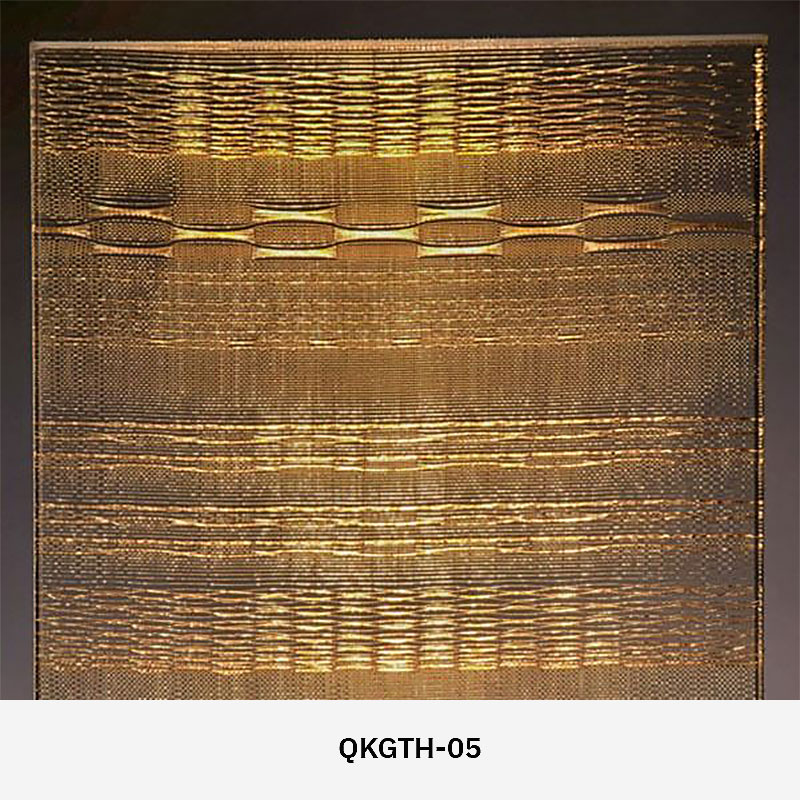

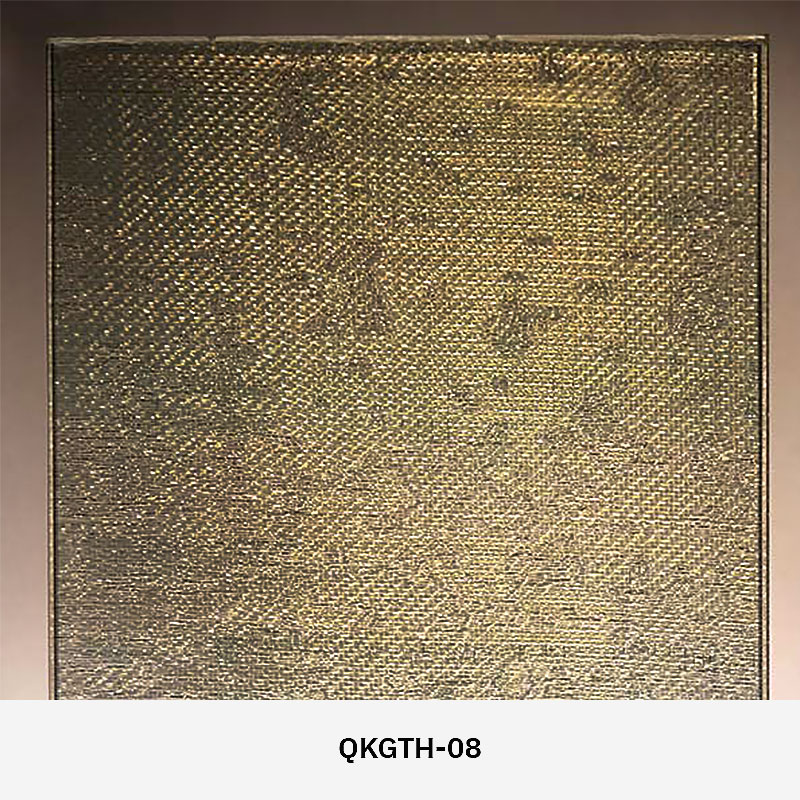

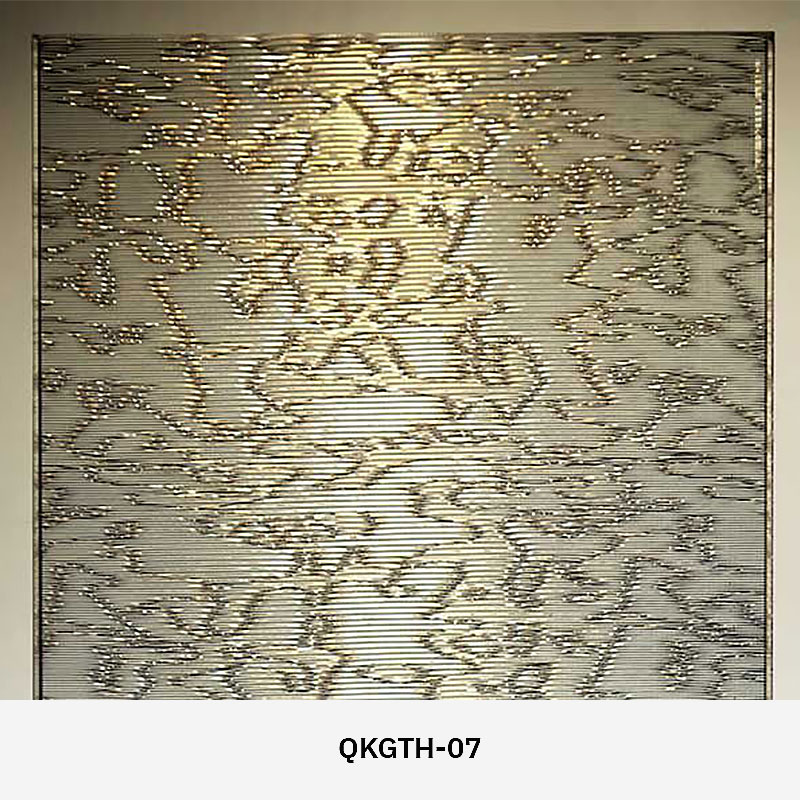

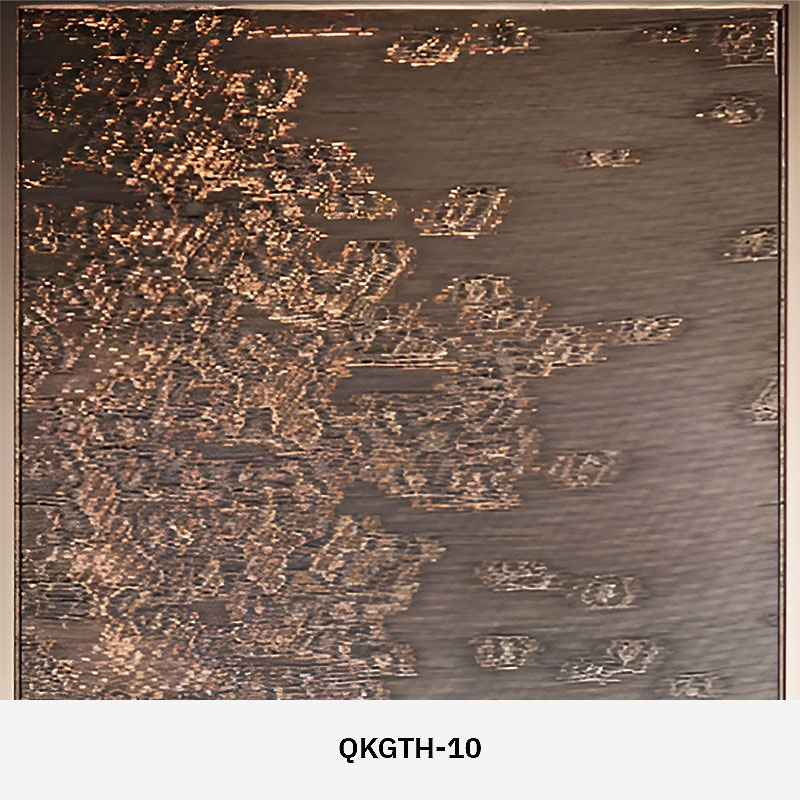

QKGTH-01, QKGTH-05, QKGTH-07, QKGTH-08, QKGTH-08A, QKGTH-10, QKGTH-11

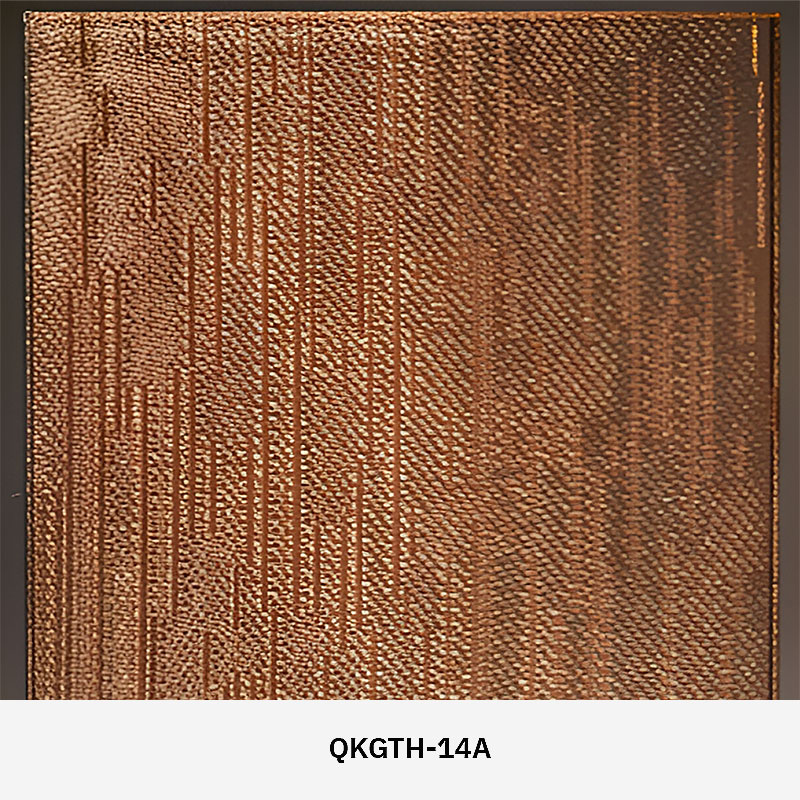

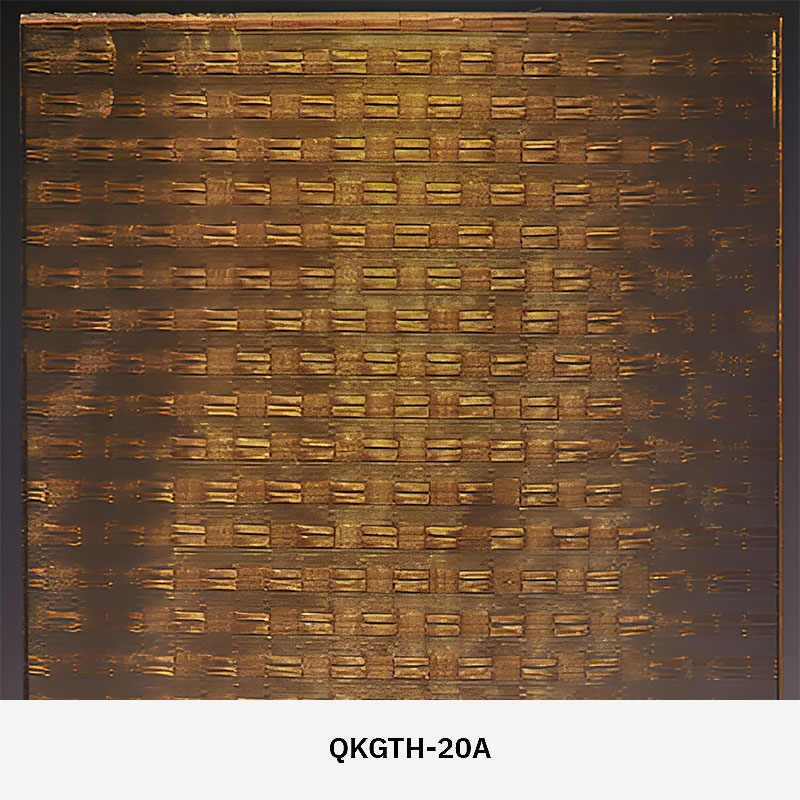

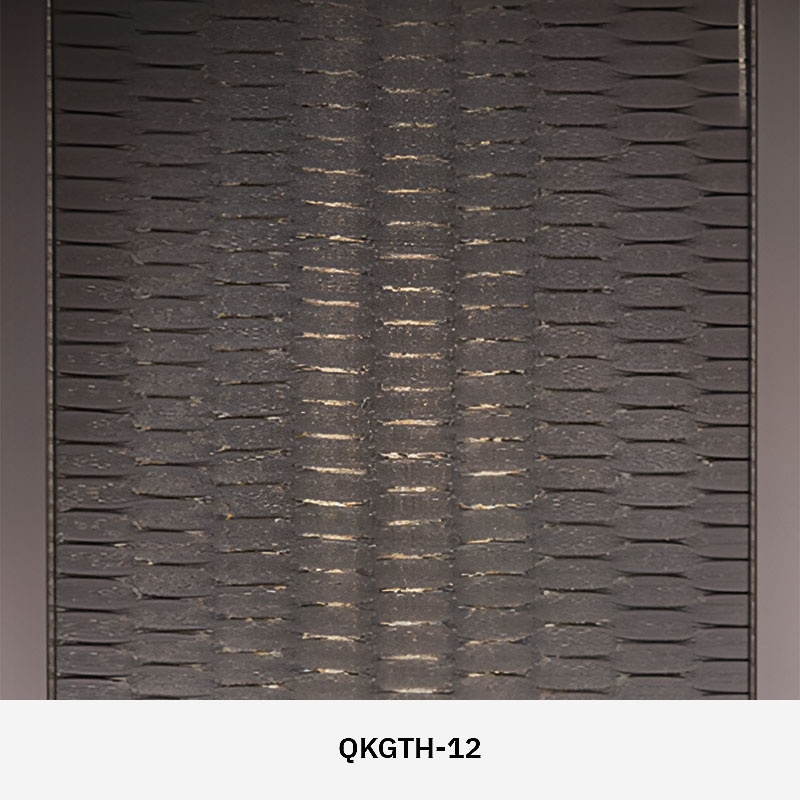

QKGTH-12, QKGTH-14, QKGTH-14A, QKGTH-20, QKGTH-20A, QKGTH-29, QKGTH-80
Material (Wire Mesh): Stainless steel, copper, brass, aluminum alloy
Glass Types:
Common laminated, tempered laminated, coated laminated, low-E laminated
Silkscreen laminated, bulletproof laminated, fireproof laminated glass
Mesh Colors: Silver, gold, red, blue, green, bronze, gray, etc.
Glass Thickness Options:
3 + 0.38 + 3 mm, 3 + 0.76 + 3 mm, 4 + 0.38 + 4 mm, 4 + 0.76 + 4 mm,
5 + 0.38 + 5 mm, 5 + 0.76 + 5 mm, 6 + 0.38 + 6 mm, 6 + 0.76 + 6 mm,
8 + 0.76 + 8 mm, 10 + 0.76 + 10 mm, and other custom thicknesses
Sizes Available:
300 × 300 mm, 1220 × 1830 mm, 1500 × 2000 mm, 1530 × 2520 mm,
1830 × 2440 mm, 2000 × 2500 mm, 2140 × 3300 mm, 2250 × 3600 mm,
2800 × 7000 mm, 3000 × 8000 mm, also available in custom sizes
Customization: Mesh patterns, logos, finishes
*Note: For more details, please refer to the attachments available in the downloads section.
Why Choose GlasMetis QKGTH Laminated Wire Mesh Glass Panel?
This glass panel offers an ideal balance of beauty, safety, and performance. Whether used in high-traffic areas or as a decorative feature, it brings modern sophistication to any space.
